Kaye RT Valprobe

Kaye RT Valprobe (Real Time)

Kaye ValProbe® RT (Real-Time) is a wire-free real-time process validation and monitoring system designed around the measurement and reporting requirements of the most intensely regulated industries.

It is a state of the art validation system design that meets industry and regulatory (FDA / GAMP) requirements for thermal validation. The ValProbe RT system combines high accuracy measurements, automated sensor calibration, an intuitive metro style user interface, and extensive reporting to simplify the complete validation process.

Kaye ValProbe RT is the successor of the widely recognized Kaye ValProbe, the accepted standard in wireless validations systems for over 15 years.

The ValProbe RT family of data loggers provide accurate, convenient, and reliable process measurement for a wide range of pharmaceutical, and medical device applications. The wireless design greatly simplifies monitoring and validation of severe and hard-to-reach environments. See the table below for logger-types and recommended applications.

Lifting Real Time Validation to the Next Level!

The Kaye ValProbe RT System is a unique design and concept combining a ValProbe RT system with a Validation Console.

The Console is a rugged, hardened tablet to interface with your Kaye ValProbe RT and legacy hardware. It is pre-loaded with all Kaye software and specifically engineered to Validation tasks only. This concept greatly simplifies software validation and dependency on continuously changing PC’s, Operating Systems, and core loads.

The Kaye ValProbe RT is intuitive, efficient, and easy to operate – allowing you to focus on the validation, not the technology.

Kaye ValProbe RT
Steam Sterilizers  Dry Heat Sterilizers Steam in Place (SIP) Water Cascade/Fall Sterilizer Incubators Stability Chambers Freezers Freeze Dryer /Lyophilisation Vessels
Rigid Logger

Flexible Logger

Bendable Logger

Freeze Dryer Logger

Pressure/Temp Logger

Kaye Valprobe RT Features:

  • Life data under harsh conditions via RF during validation study
  • RF-Range up to 100 meters
  • Temperature Range -85 to 400°C
  • Up to 100.000 samples per sensor
  • Scan rate down to 1 second
  • ValProbe system capacity up to 50 loggers/250 sensors
  • Customer interchangeable batteries
  • Accuracy up to 0.1°C
  • Unmatched battery life

Kaye ValProbe RT Generic Specifications

Base Station Dimensions  7.6 in x 5.2 in x 2.2 in
190mm x 130 mm x 55 mm
Logger Dimensions Hight: 1,9” / Diameter 1,4”
48mm / 36mm
Logger Material Stainless Steel 316L and Peek
Battery Field replaceable – 3.6V Lithium
Sampling Rate Starting at 1 sec
Data Storage 100.000 Samples
retained in non-volatile memory
Real-Time Clock Accuracy < 15sec/day
Calibration NVLAP/DAkkS Calibration
Verification Automated User
Verification capability
Sensing Element Precision Platinum RTD
Environmental Temperature -85°C to 140°C
Environmental Pressure 0-5bar absolute
Environmental Humidity 0-100% condensing
Regulatory Compliance UL and CE


Temperature Loggers

Specifications Rigid Bendable  Flexible Surface
Sensor Type Single Sensor Single and Dual Sensor Single, Dual and 5-Channel Ultra Flat Surface Sensor
Sensor Lenght 1.5, 3, 6, 9″ inches
38, 76, 152, 229 mm
12, 24, 36″ inches
305, 610, 915 mm
40″ inches
1000 mm
Tip Diameter 0.118″; 3mm 0.095″; 2.4mm 0.095″; 2.4mm 32mm diameter
Meassurement Range -85°C to 140°C -85°C to 400°C -85°C to 140°C -85°C to 140°C
Accuracy -85°C to 140°C,     ±0.1°C -85°C to 140°C,    ±0.1°C
140°C to 400°C    ±0.25°C
-85°C to 140°C,     ±0.1°C -85°C to 140°C,     ±0.1°C

Pressure & Temp. Logger

Specifications                              Pressure & Temp. Logger

Sensor Type                                    Single P/T Sensor

Tip Diameter                                    1/4 NPT Connection fitting

Meassurement Range                     0°C to 140°C / 0-5bar abs.

Accuracy                                            0°C to 120°C        ±25mb
120°C to 135°C     ±10mb
135°C to 140°C     ±25mb
0°C to 140°C,       ±0.1°C


  • Steam Sterilizer
  • Dry Heat Sterilizers
  • Steam in Place (SIP)
  • Water Cascade/Fall Sterilizer
  • Incubators
  • Stability Chambers
  • Freezers
  • FreezeDryer/Lyophilisation
  • Vessels

Parts of the Kaye Valprobe RT System

Kaye Valprobe RT Base Station

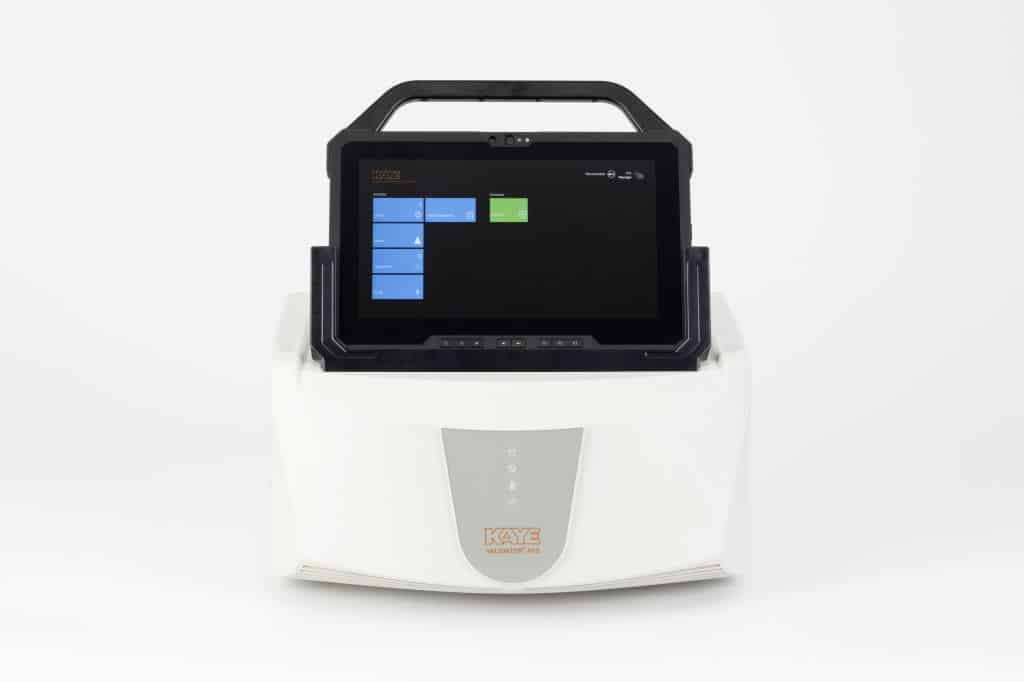

Kaye 12″ Validation Console
Tablet ValProbe RT Console


Temperature Logger Rigid Sensors

Surface Sensor (FreezeDryer)

Single and Dual Bendable Sensor Logger

Single, Dual or 5 Flexible Sensor Logger

Pressure/ Temperature Sensors

Humidity / Temperature Logger
